PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

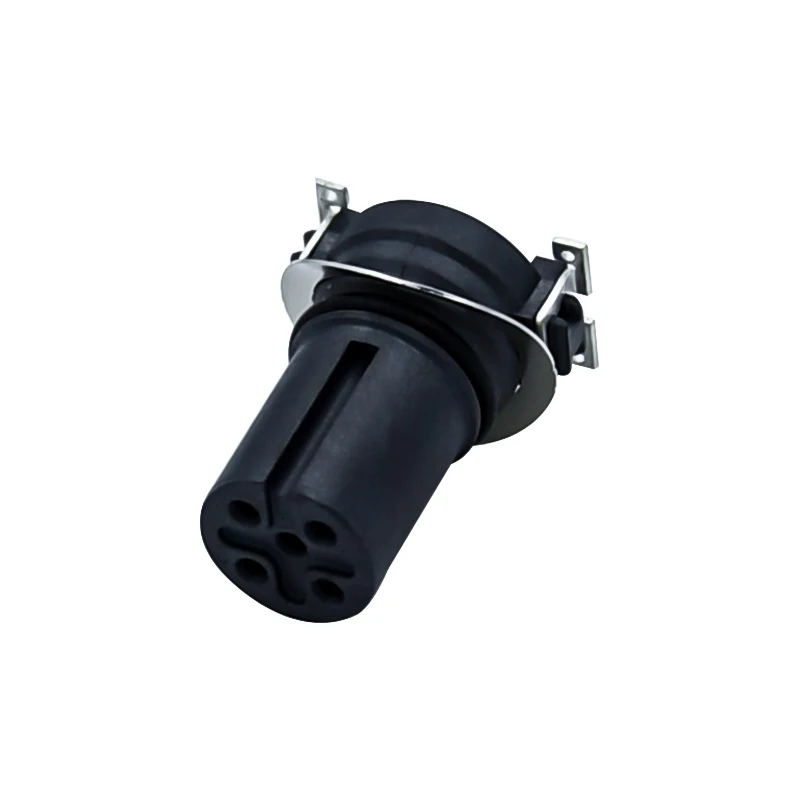

PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67

Brand Name : RIGOAL

Model Number : m12 waterproof connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Colour : black

Certificate : CE, ROHs, Reach

current Voltage : 250V

Current Rating : 4A

Material : PVC

Pins : 4p

Mating cycle : more than 500 times

Contact Now

M12 Female SMD Socket , PCB Type,A Code 4pin IP67 Shield Insulation Body Connector

Product Description
PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67
PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67
PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67
Bus systems:Industrial EthernetCoding: A/B/D coded
Configuration A-side:axial
Contact type: Female
Installation height:9 mm
Locking type:Screwable
Mounting options [e.g. front/back panel mounting etc.: ]Front panel mounting
Product type:BUS Systems
Screw connection :M16x1,5
Size A-side:M12x1Size
Number of positions:4/5/8 pos.
Style:Sockets
Termination signal:]SMT
Material Data
Housing color:Nickel
Housing material:copper alloy
Insulator color:Black
Insulator material:LCP GF
Plating signal contact (mating area):Gold over nickel

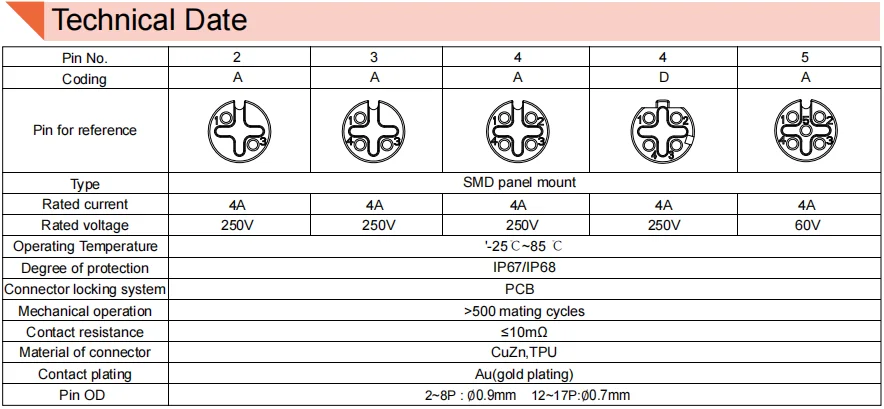

Signal contact material:Copper alloyTechnical Data
PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67
PVC Female SMD Socket M12 Waterproof Connector PCB Type 4 Pin IP67
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
RIGOAL
Model Number
M12 CONNECTOR
Type
ADAPTER
Application
Automotive
Gender
Male
Colour
black
Certificate
CE, ROHs, Reach

Product Tags:

SMD Socket M12 Waterproof Connector



PVC M12 Waterproof Connector



IP67 4 Pin Waterproof Connector
